Tank weigh image

CCT2ANTIV

Tank weigh module for CT-2 load cell

  • Made of galvanised and stainless steel
  • High reliability and durability
  • Easy assembly, anchoring with 4 screws at the top and 4 at the bottom

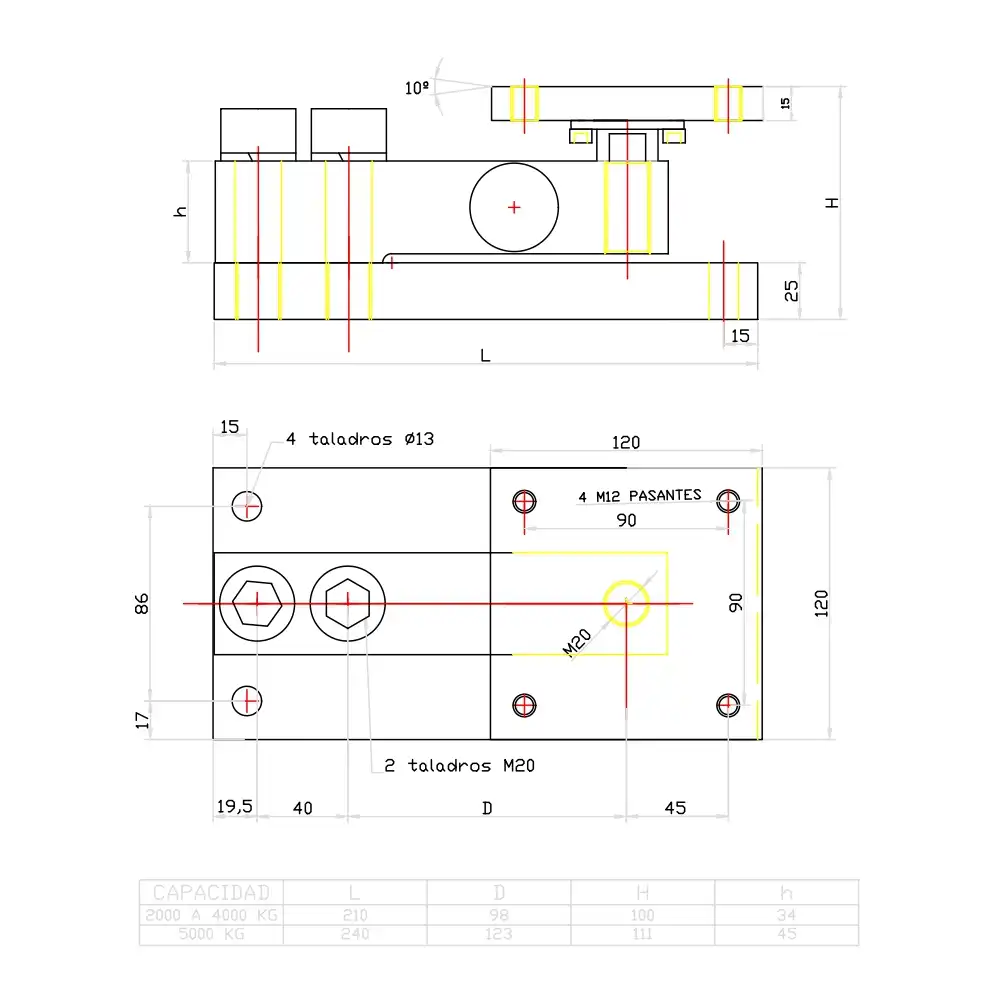

Tank weigh drawing
Technical specifications

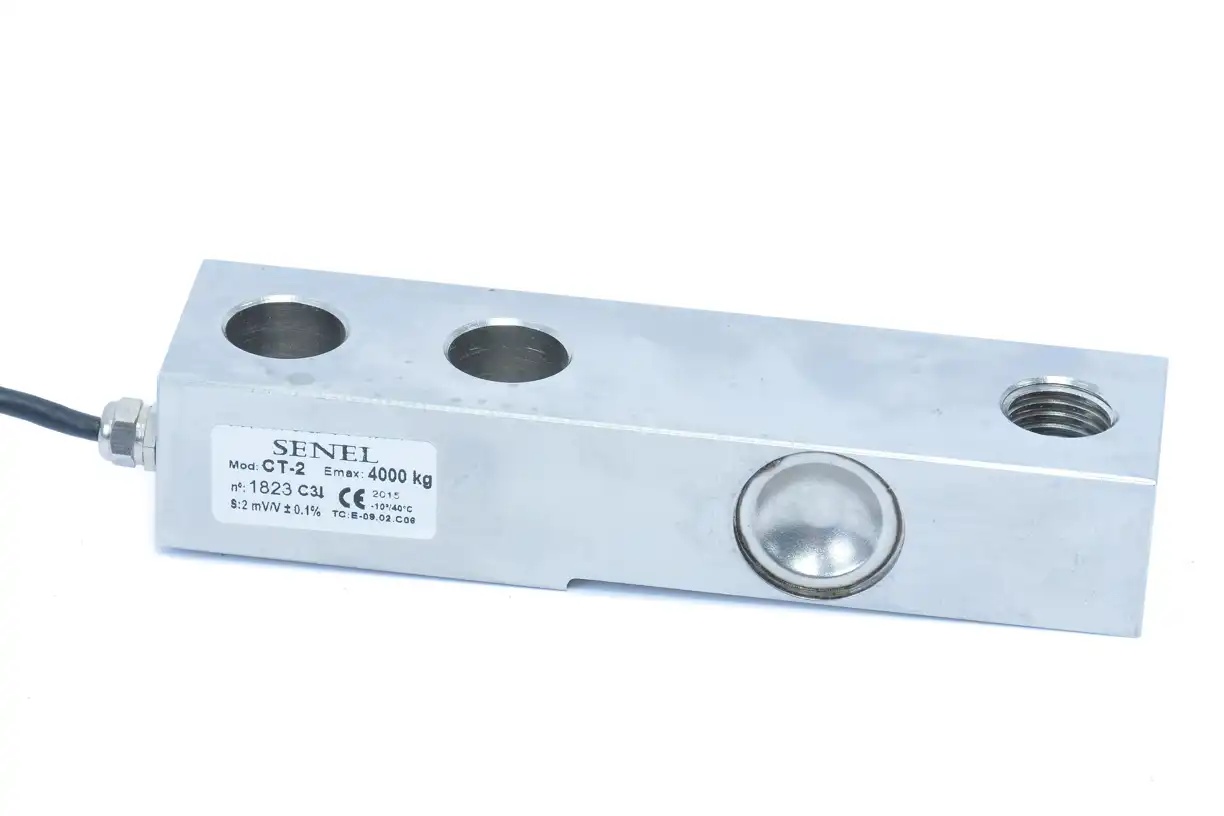

Load cell image

CT-2

Stainless steel shear beam load cell, IP68 protection.
