CT-A0
Load cell ref.: CTA0
- Emax: 50-75-100-150-200-250-300 kg
- Nickel-plated steel
- IP67 protection
- For 4-cell scales
- Characteristics

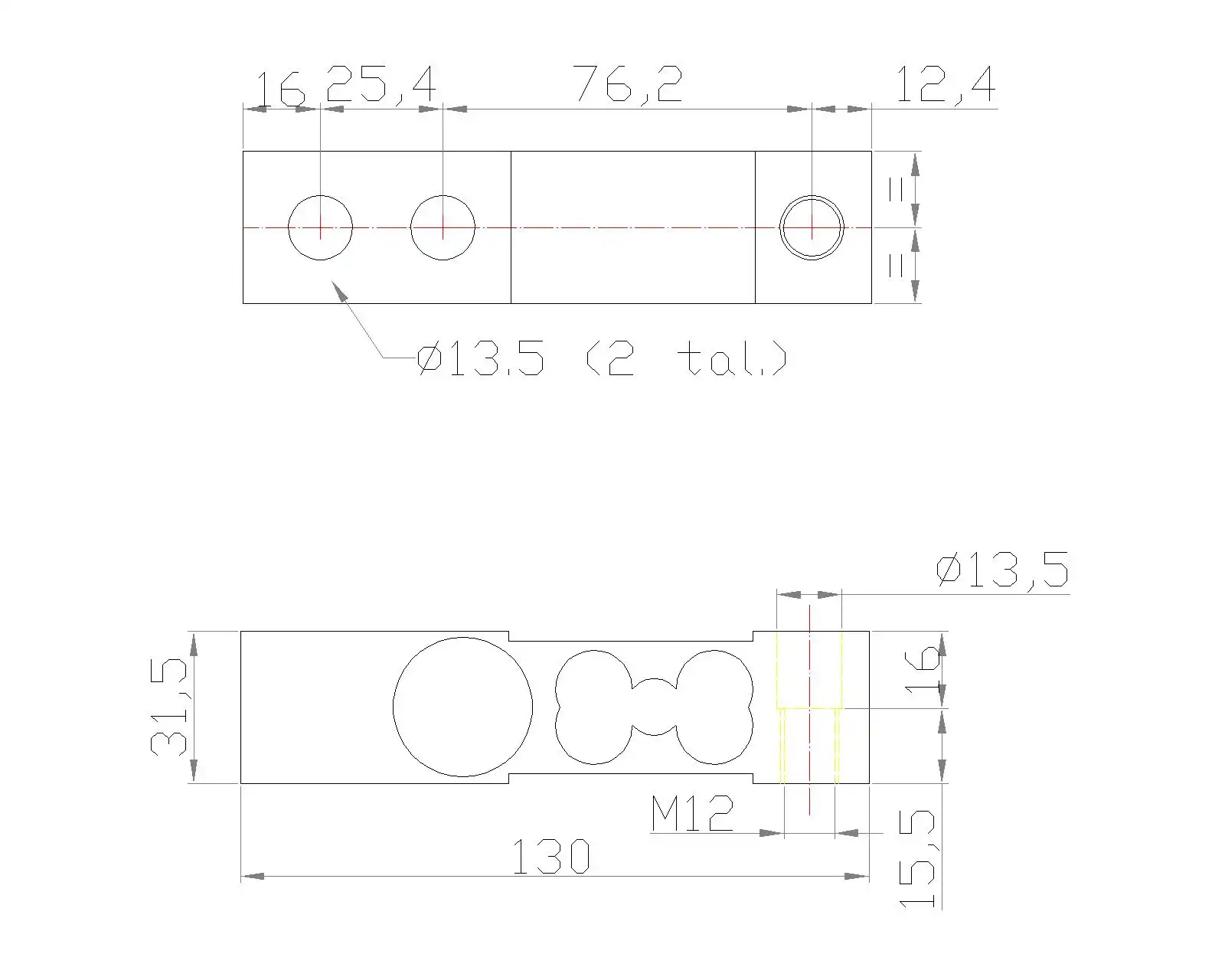

- Drawings
- Documentation
Technical specifications
| Accuracy class: | C3 |
| Vmin: | Emax / 10.000 |
| Rated output: | 2 mV/V ± 0.1% |
| Excitation voltage: | 5 ÷ 15 V |
| Input resistance: | 350 Ω ± 10 Ω |
| Output resistance: | 350 Ω ± 4 Ω |
| Insulation resistance: | > 5000 MΩ (50Vdc) |
| Temperature limits: | -10º / +40ºC |
| Protected against humidity: | IP-67 |
| Cable length: | 5 m |
