CT-A1
Load cell ref.: CCTA1
- Emax: 400-500-750-1000-1500-2000 kg
- TC E-09.02.C06 (3000d OIML R60)
- Stainless steel
- Fully welded
- IP68 protection
- IP69K option
- Characteristics

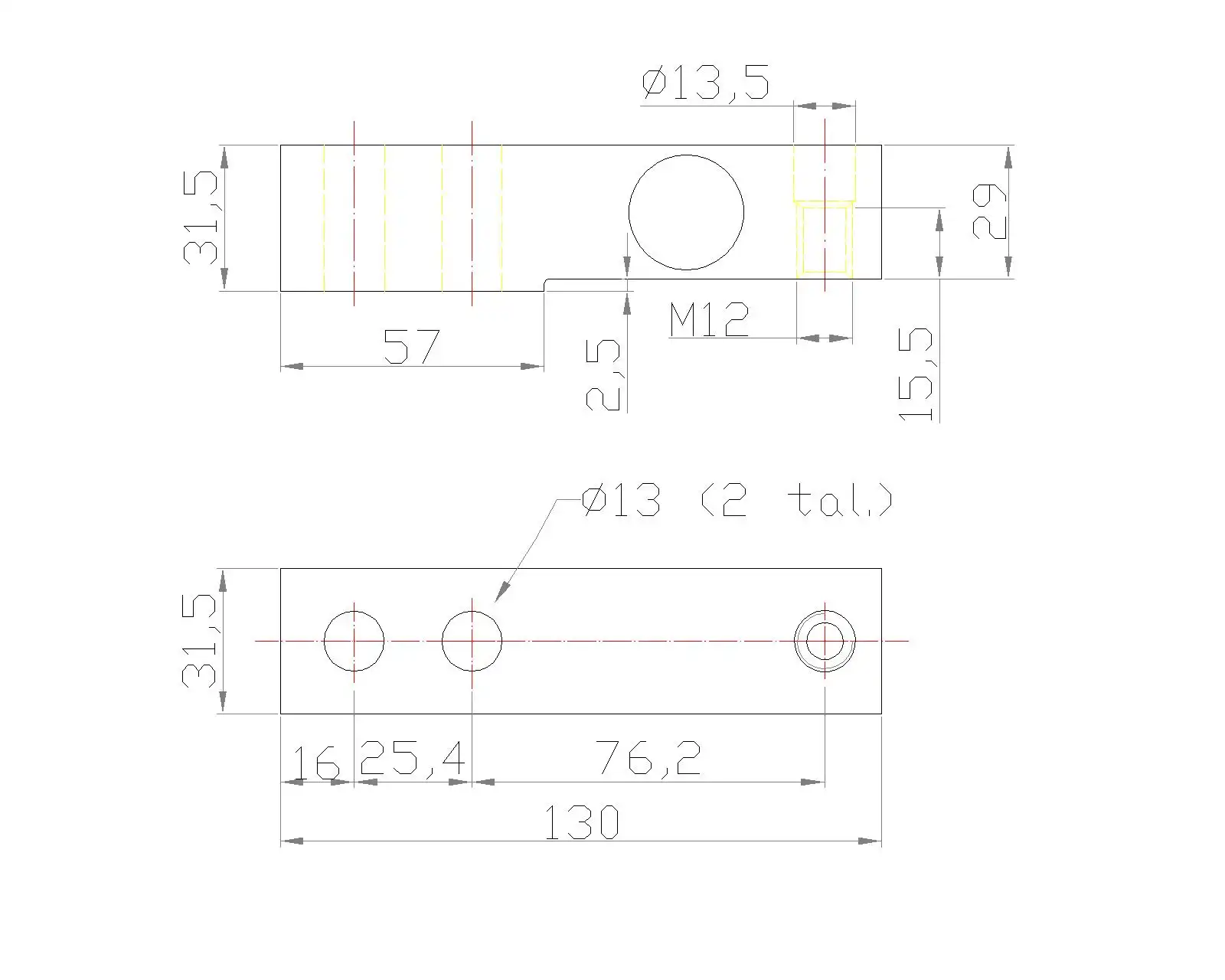

- Drawings
- Documentation
- Accessories
Technical specifications
| Accuracy class: | C3 |
| Vmin: | Emax / 10.000 |
| Rated output: | 2 mV/V ± 0.1% |
| Excitation voltage: | 5 ÷ 15 V |
| Input resistance: | 350 Ω ± 10 Ω |
| Output resistance: | 350 Ω ± 4 Ω |
| Insulation resistance: | > 5000 MΩ (50Vdc) |
| Temperature limits: | -10º / +40ºC |
| Protected against humidity: | IP-68 |
| Cable length: | 5 m |
CCTA1ANTIV tank weigh
Tank weigh module for CT-A1 load cell. High reliability and durability, available in galvanized steel and stainless steel.
Load foot
Height-adjustable load feet, crafted from zinc-plated steel and stainless steel.
Silent-Block
Damping system designed for weighing modules. Ensures high reliability and durability, manufactured from either rubber or vulkollan.
