CTF2B
Load cell ref.: CCTF2B
- Emax: 20 t
- Stainless steel
- For mounting on weighbridges
- Characteristics

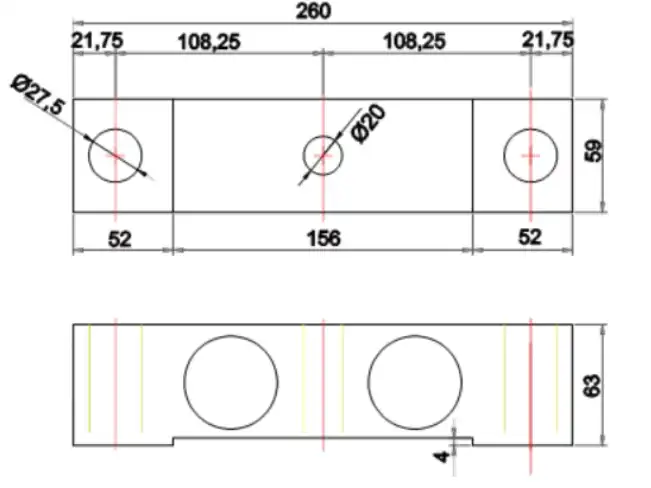

- Drawings
- Documentation
Technical specifications
| Accuracy class: | C3 |
| Vmin: | Emax / 10.000 |
| Rated output: | 3mV/V ± 0.1% |
| Excitation voltage: | 5 ÷ 15 V |
| Input resistance: | 700 Ω ± 10 Ω |
| Output resistance: | 700 Ω ± 4 Ω |
| Insulation resistance: | > 5000 MΩ (50Vdc) |
| Temperature limits: | -10º / +40ºC |
| Protected against humidity: | IP-67 |
| Cable length: | 15 m |
