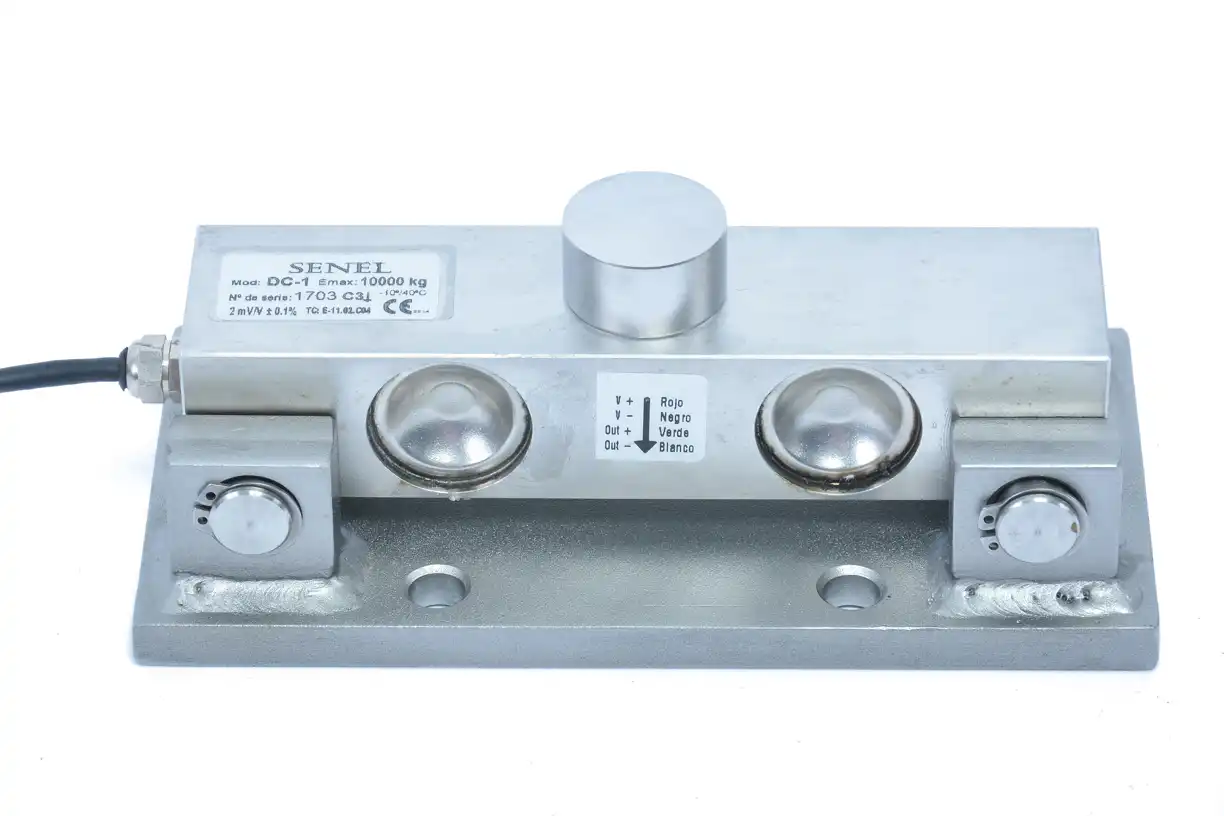

DC-1
Load cell ref.: CDC1
- Emax: 2000-3000-4000-5000-7500-10000 kg
- TC E-11.02.C04 (3000d OIML R60)
- Stainless steel
- For weighbridges, tanks, hoppers
- IP68 protection
- Characteristics

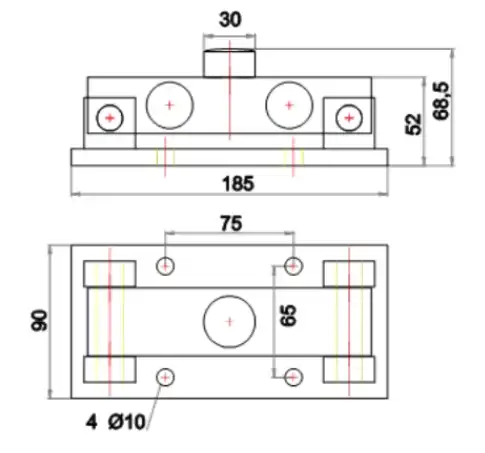

- Drawings
- Documentation
- Accessories
Technical specifications
| Accuracy class: | C3 |
| Vmin: | Emax / 10.000 |
| Rated output: | 2 mV/V ± 0.1% |
| Excitation voltage: | 5 ÷ 15 V |
| Input resistance: | 700 Ω ± 10 Ω |
| Output resistance: | 700 Ω ± 4 Ω |
| Insulation resistance: | > 5000 MΩ (50Vdc) |
| Temperature limits: | -10º / +40ºC |
| Protected against humidity: | IP-68 |
| Cable length: | 5 m |
