MN-10
Load cell ref.: CMN10
- Emax: 150–300–500-750-1000 kg
- TC E-08.02.C08 (4000d OIML R60)
- Stainless steel
- 5000 divisions OIML R60 Class C
- For single-cell platforms up to 800 x 800 mm
- Characteristics

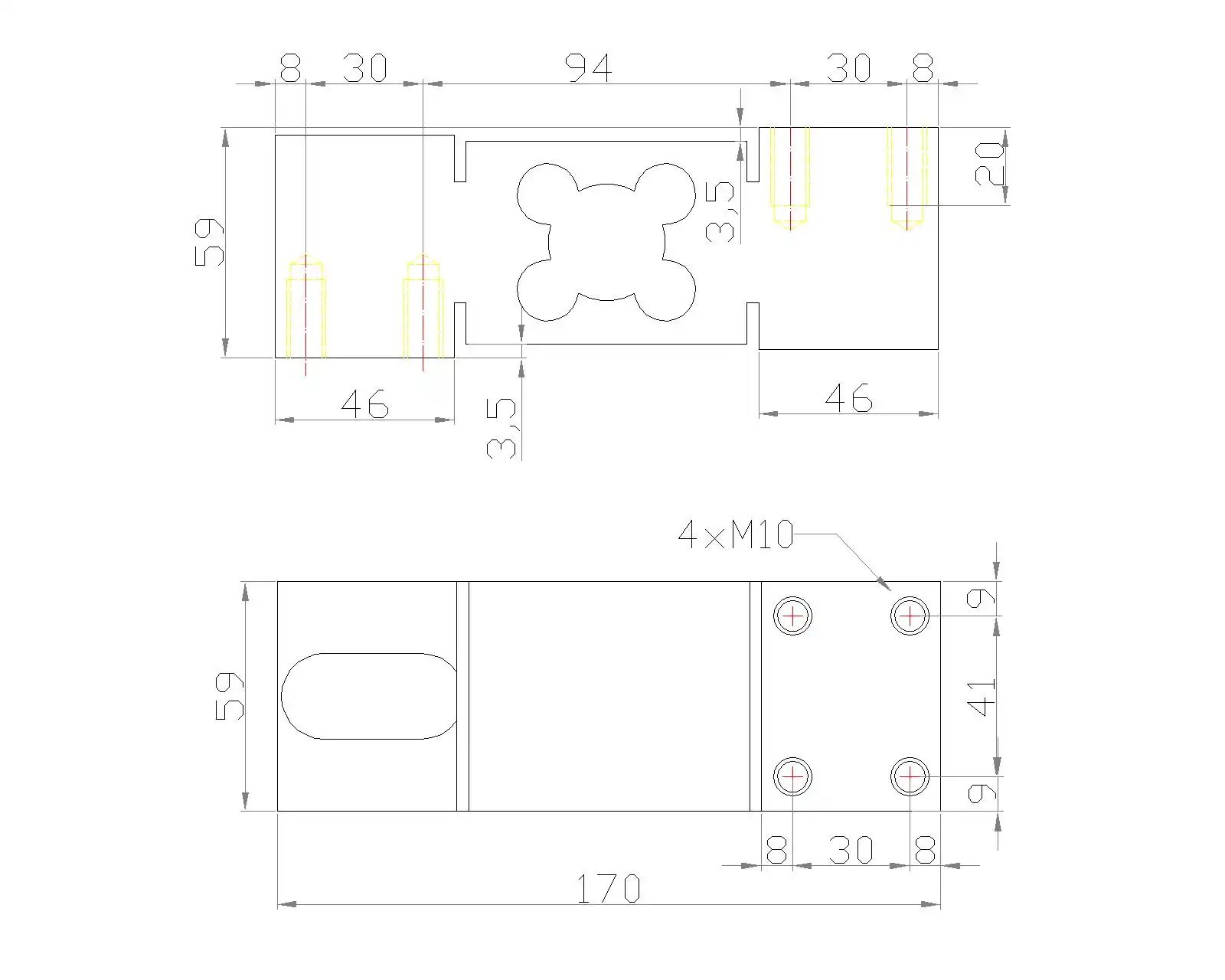

- Drawings
- Documentation
Technical specifications
| Accuracy class: | C5 |
| Vmin: | Emax / 10.000 |
| Rated output: | 2 mV/V ± 0.1% |
| Excitation voltage: | 5 ÷ 15 V |
| Input resistance: | 390 Ω ± 10 Ω |
| Output resistance: | 350 Ω ± 4 Ω |
| Insulation resistance: | > 5000 MΩ (50Vdc) |
| Temperature limits: | -10º / +40ºC |
| Protected against humidity: | IP-67 |
| Cable length: | 5 m |
