SX-1
Load cell ref.: CSX1
- Emax: 30-50-75-100-150 kg
- Stainless steel
- For hook assembly, hybridization, suspended tanks
- Engineered for both tension and compression applications
- Characteristics

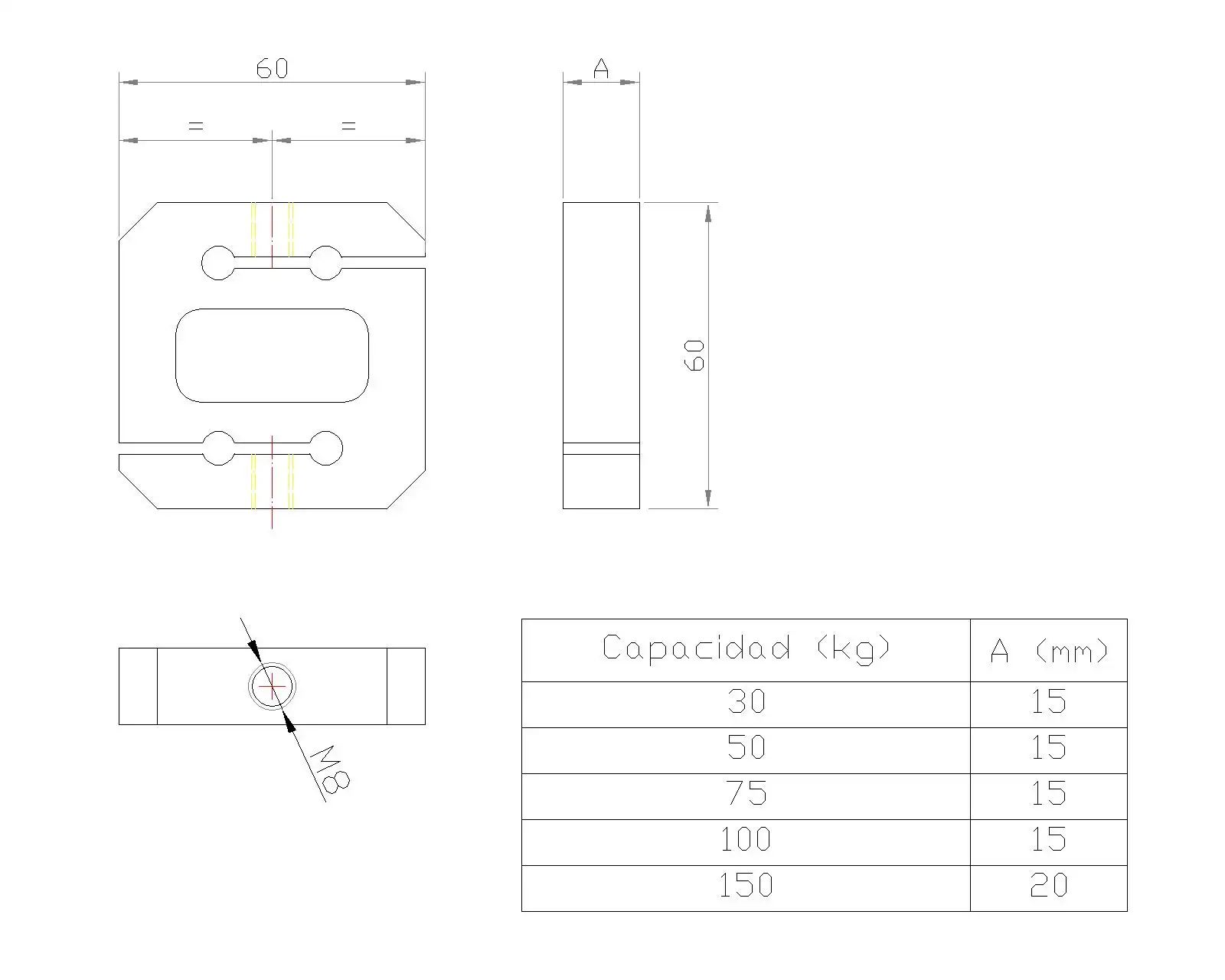

- Drawings
- Documentation
- Accessories
Technical specifications
| Accuracy class: | C3 |
| Vmin: | Emax / 10.000 |
| Rated output: | 2 mV/V ± 0.1% |
| Excitation voltage: | 5 ÷ 15 V |
| Input resistance: | 350 Ω ± 10 Ω |
| Output resistance: | 350 Ω ± 4 Ω |
| Insulation resistance: | > 5000 MΩ (50Vdc) |
| Temperature limits: | -10º / +40ºC |
| Protected against humidity: | IP-67 |
| Cable length: | 5 m |
