SX-3

Load cell ref.: CSX3

  • Emax: 1000-1500-2000-2500-3000-5000-6000-10000 kg
  • Stainless steel
  • For hook assembly, hybridization, suspended tanks
  • Engineered for both tension and compression applications
  • IP68 option (3000 up 10000 kg)
  • Attention!: 10t only suitable for compression work

Technical specifications

Accuracy class: C3
Vmin: Emax / 10.000
Rated output: 2 mV/V ± 0.1%
Excitation voltage: 5 ÷ 15 V
Input resistance: 350 Ω ± 10 Ω
Output resistance: 350 Ω ± 4 Ω
Insulation resistance: > 5000 MΩ (50Vdc)
Temperature limits: -10º / +40ºC
Protected against humidity: IP-67 / IP-68
Cable length: 5 m

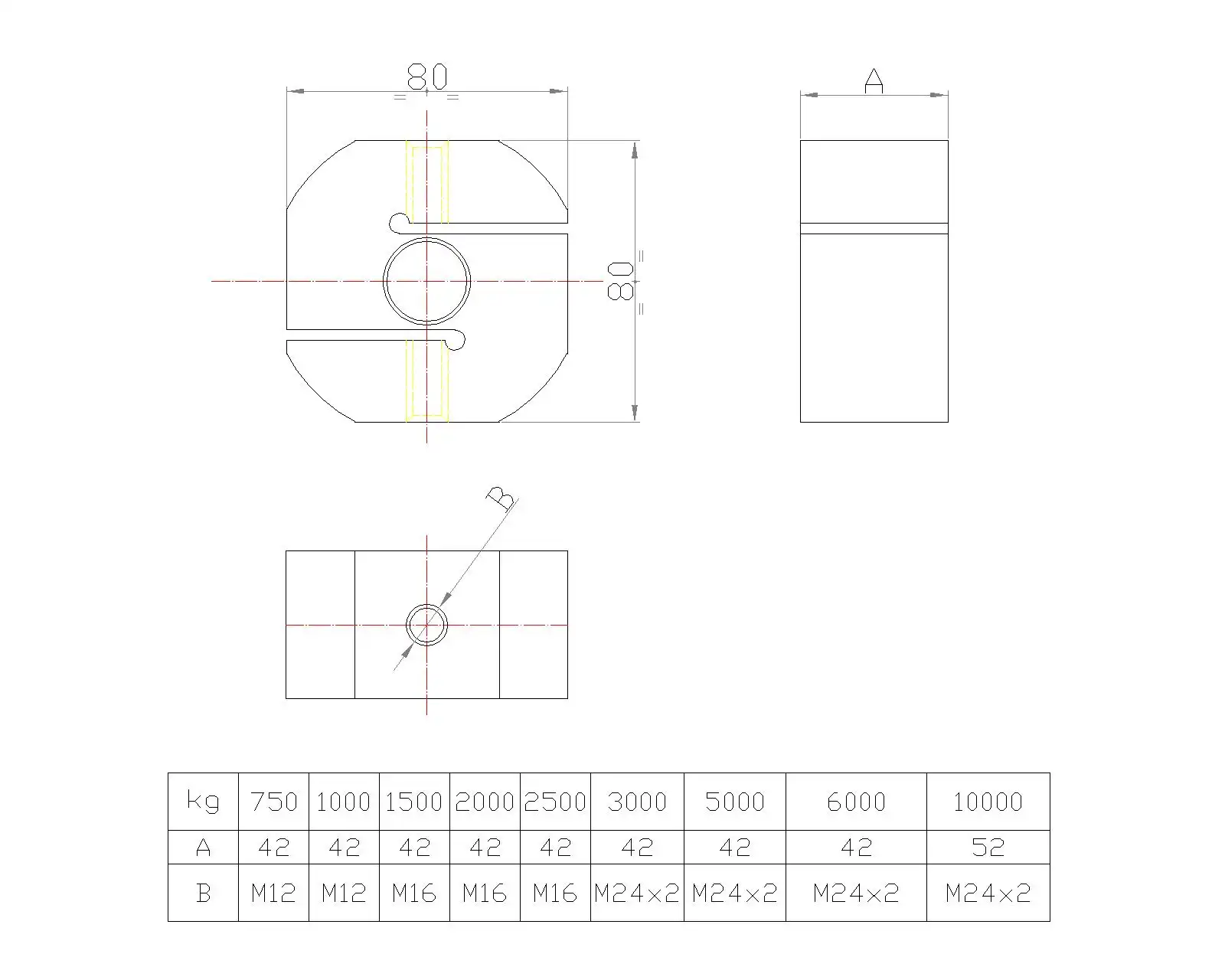

SX-3 drawing
Cell circuit diagram
Technical specifications

Knuckle eyes image

Knuckle eyes

Knuckle eyes for suspended load cells, mounting on SX1, SX2 and SX3. For weighing on traction, hook and overhead scales.
