VA1 printer

Weighing indicator ref.: VVA1IMP

  • Built-in 28-column thermal printer
  • INOX shell
  • Display LED 20 mm
  • Truck weights / Tare weights / Axle weights
  • Alphanumeric display 4 lines by 20 characters
  • Double RS232 interface
  • Tares, plates, products, customers and suppliers stored in memory
  • Up to 1000 weighs in historical
  • Memory of trucks in transit and historical, 1st and 2nd heavy detection
  • Configurable database
  • PC keyboard connection (PS/2)

Technical specifications

Accuracy class: III / IIII
Number of verif. scale intervals: <= 10000
Load cell excitation voltage: 8 Vdc
Signal voltage for dead load: 0 ÷ 16 mV
Min input voltage for interval: 1 µV
Measuring voltage range: 10 ÷ 24 mV
Load cell impedance range: 40 ÷ 2000
Temperature range: -10º / +40ºC
Power supply: 220 Vac
Power supply (battery): 12 ÷ 24 Vdc
Sense sytem: Available
>Load cell cable length (4 wire): 5 m
Load cell cable length (6 wire): No limit

Options

  • RS485 output
  • Additional Wifi
  • Senel repeater data output
  • Additional Ethernet

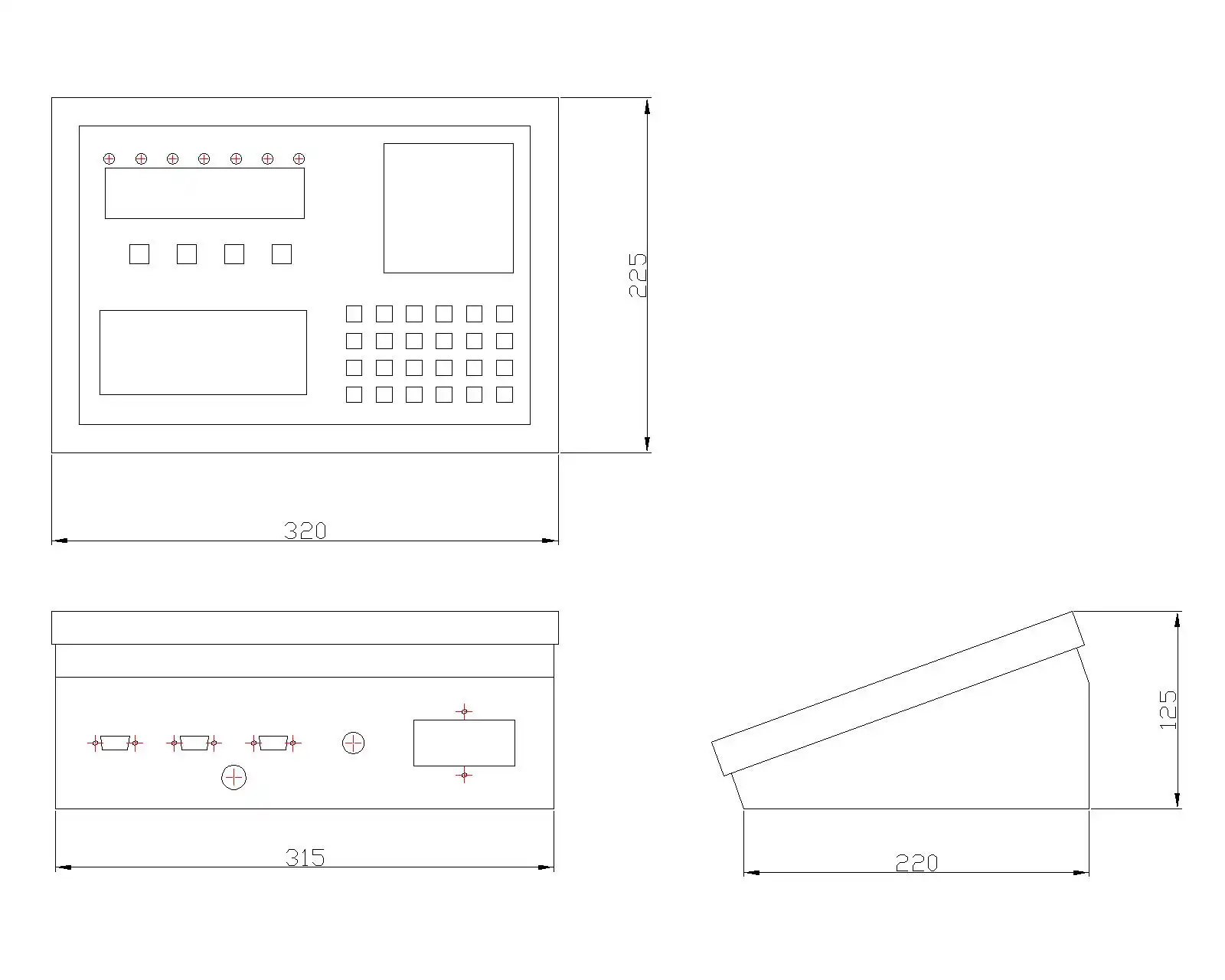

VA1 printer drawing
Technical specifications
