VDIN

Weighing indicator ref.: VVDIN

  • ABS plastic box
  • 10,000 external divisions (100,000 internal)
  • 1uV step
  • Tare weight, with printer output
  • Two configurable digital opto-coupled inputs
  • Two opto-isolated outputs
  • Serial output RS-232, RS-485 with MODBUS RTU protocol, JBUS
  • Analogue output 0-10V, 0-20mA, 4-20mA, 0-24mA
  • Calendar clock with configurable Datalogger
  • Languages: Spanish, English, French, Italian and Portuguese
  • Manual tare locked by keypad
  • Numerical codes, ticket repetition, programmable header
  • Multiprotocol

Technical specifications

Accuracy class: III / IIII
Number of verif. scale intervals: <= 10000
Load cell excitation voltage: 8 Vdc
Signal voltage for dead load: 0 ÷ 16 mV
Min input voltage for interval: 1 µV
Measuring voltage range: 10 ÷ 24 mV
Load cell impedance range: 40 ÷ 2000
Temperature range: -10º / +40ºC
Power supply: 220 Vac
Power supply (battery): 12 ÷ 24 Vdc
Sense sytem: Available
>Load cell cable length (4 wire): 5 m
Load cell cable length (6 wire): No limit

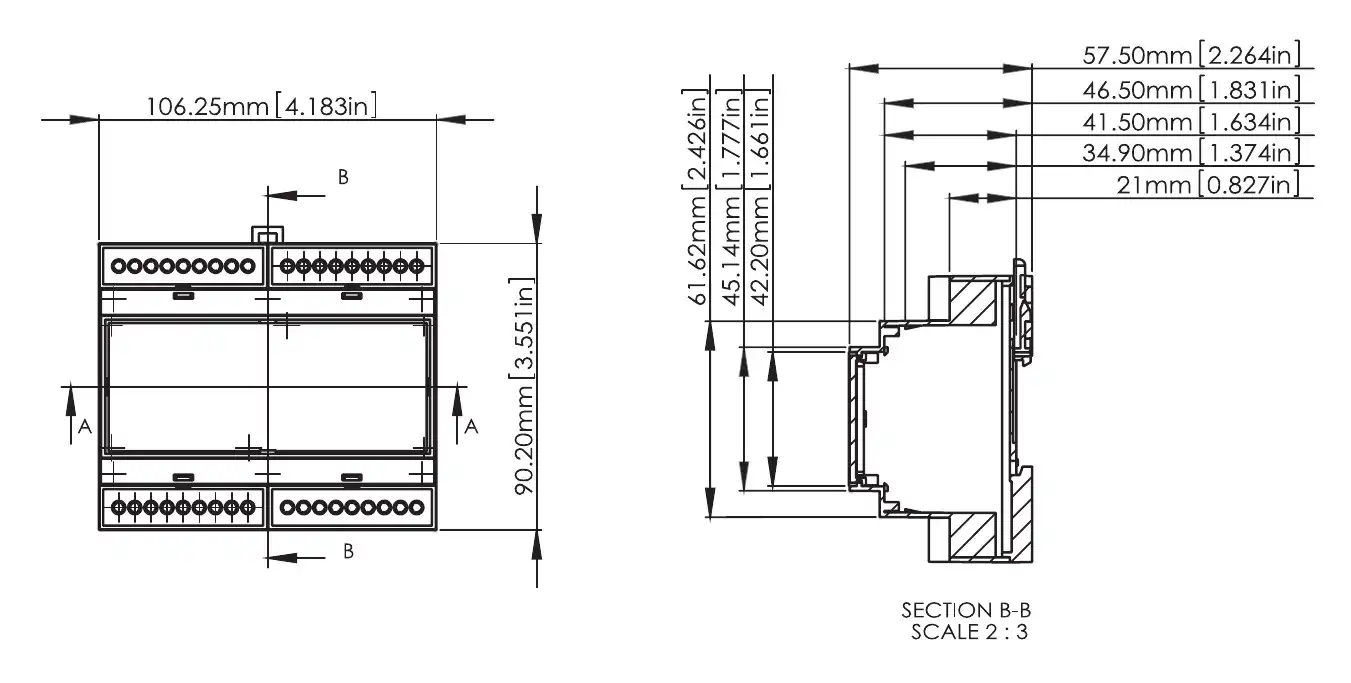

VDIN drawing
