Weighing indicator image

VN1 10

Weighing indicator ref.: VVN10

  • INOX shell
  • Display LCD 16 o led 20 mm
  • Tare weight and piece counter
  • RS232 interface
  • Languages: Spanish, English, French, Italian and Portuguese
  • Programmable head ticket and scroll
  • Manual and fast tare, blocking tare
  • Numeric codes. Ticket repetition. Auto-accumulation
  • Database up to 250 customers and 250 products

Technical specifications

Accuracy class: III / IIII
Number of verif. scale intervals: <= 10000
Load cell excitation voltage: 8 Vdc
Signal voltage for dead load: 0 ÷ 16 mV
Min input voltage for interval: 1 µV
Measuring voltage range: 10 ÷ 24 mV
Load cell impedance range: 40 ÷ 2000
Temperature range: -10º / +40ºC
Power supply: 220 Vac
Power supply (battery): 12 ÷ 24 Vdc
Sense sytem: Available
>Load cell cable length (4 wire): 5 m
Load cell cable length (6 wire): No limit

Options

  • IP-65 option
  • External battery 12/24V
  • Additional output RS232
  • RS485 output
  • Additional Wifi
  • Senel repeater data output
  • Additional 4-20mA or 0-10V analogue output (+1 opto-coupled input)
  • Additional 4 output relays and 2 optocoupled inputs
  • Additional 6 output relays and 2 optocoupled inputs
  • Clock-calendar
  • Additional Ethernet

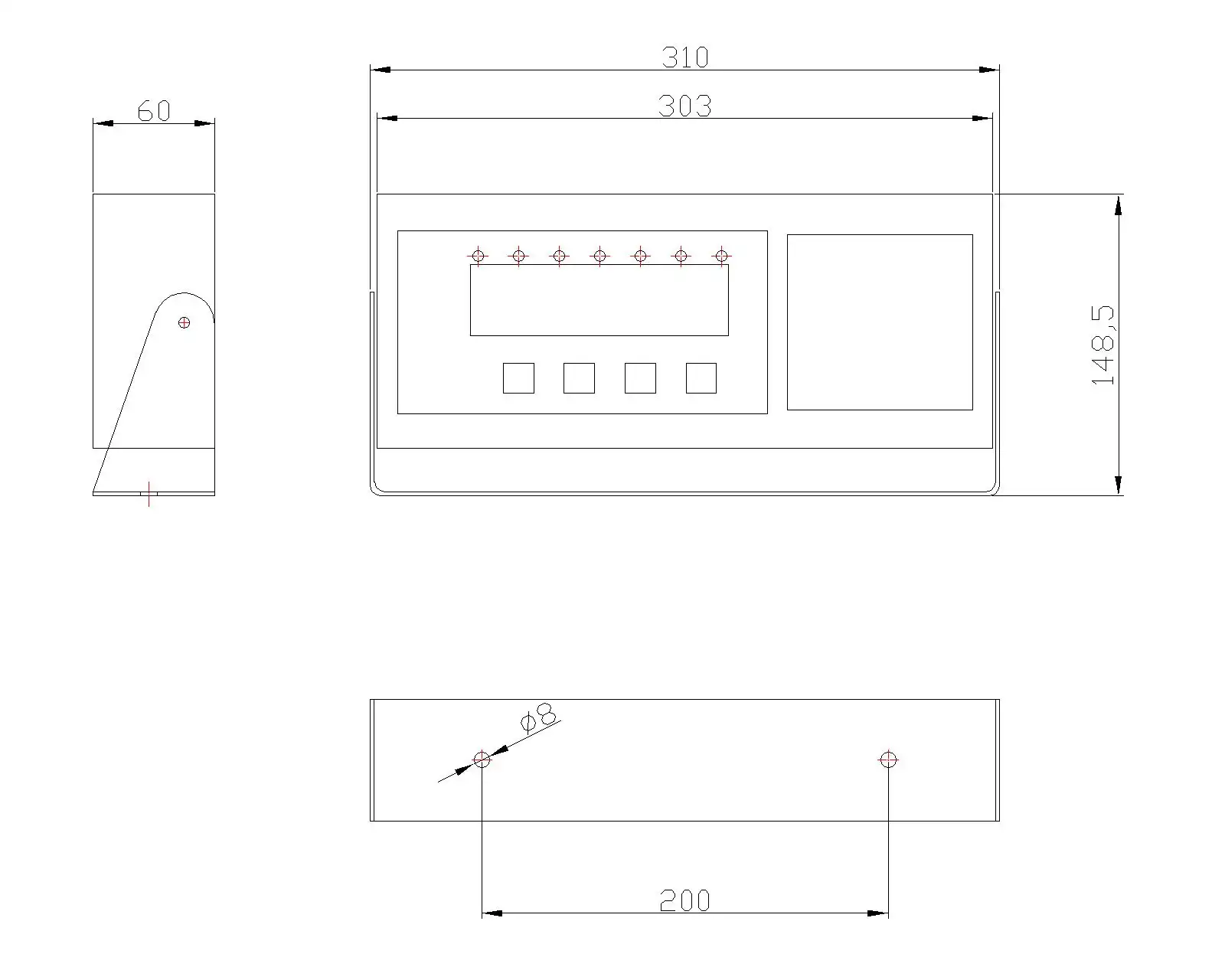

VN1 10 drawing
