VN1 Self-service

Weighing indicator ref.: VVN1/MON

  • 15 mm character LCD display
  • Coin or token selector
  • RS232 interface
  • PC keyboard connection (PS/2)
  • Languages: Spanish, English, French, Italian and Portuguese
  • Programmable head ticket and scroll
  • Amount by tranche
  • Ticket repetition
  • Built-in 28-column thermal printer
  • Configurable as a repeater

Technical specifications

Accuracy class: III / IIII
Number of verif. scale intervals: <= 10000
Load cell excitation voltage: 8 Vdc
Signal voltage for dead load: 0 ÷ 16 mV
Min input voltage for interval: 1 µV
Measuring voltage range: 10 ÷ 24 mV
Load cell impedance range: 40 ÷ 2000
Temperature range: -10º / +40ºC
Power supply: 220 Vac
Power supply (battery): 12 ÷ 24 Vdc
Sense sytem: Available
>Load cell cable length (4 wire): 5 m
Load cell cable length (6 wire): No limit

Options

  • Multi-currency selector
  • Token
  • iButton
  • RFID
  • Vandal-resistant keypad
  • RS485 output
  • Vandal-resistant button
  • Additional Ethernet

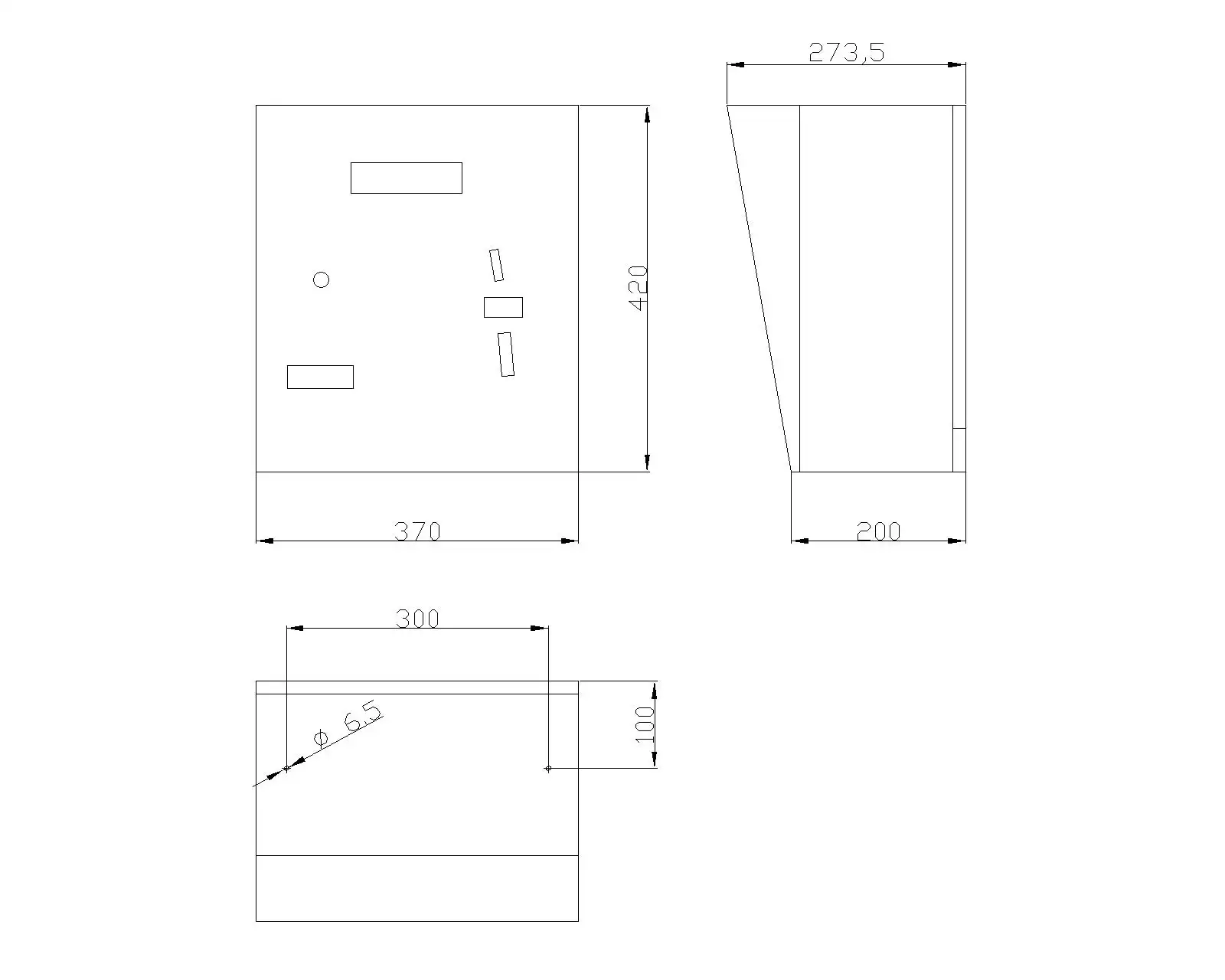

VN1 Self-service drawing
