FLE-2
Load cell ref.: CFLE2
- Emax: 15-25-30-50-75-150-200-250-300-500-750-1000-1500 kg
- TC E-08.02.C10 / TC E-09.02.C07 (3000d OIML R60)
- Stainless steel
- Fully welded
- IP68 protection
- IP69K option
- Characteristics

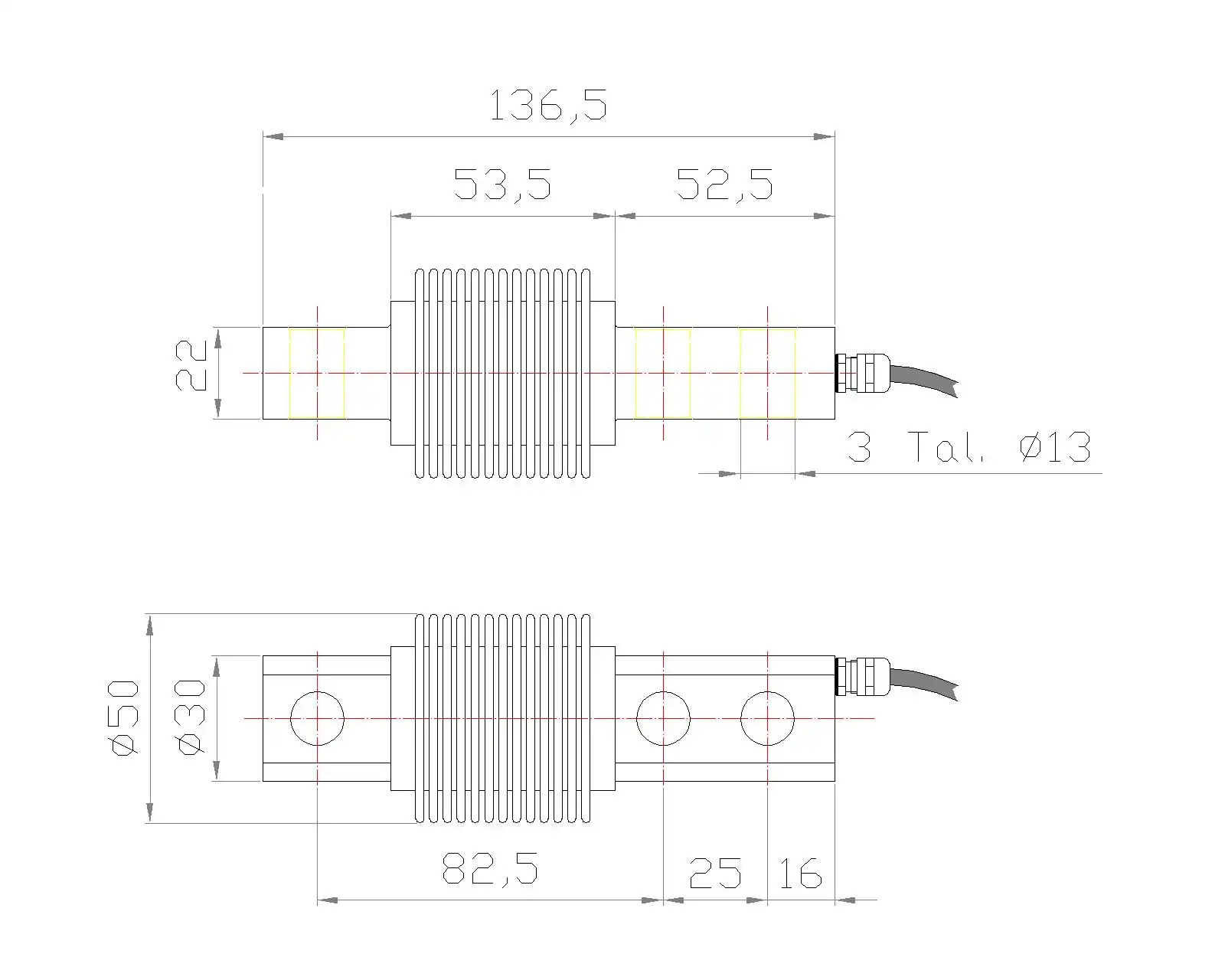

- Drawings
- Documentation
- Accessories
Technical specifications
| Accuracy class: | C3 |
| Vmin: | Emax / 10.000 |
| Rated output: | 2 mV/V ± 0.1% |
| Excitation voltage: | 5 ÷ 15 V |
| Input resistance: | 350 Ω ± 10 Ω |
| Output resistance: | 350 Ω ± 4 Ω |
| Insulation resistance: | > 5000 MΩ (50Vdc) |
| Temperature limits: | -10º / +40ºC |
| Protected against humidity: | IP-68 |
| Cable length: | 5 m |
CFLE2ANTIV tank weigh
Tank weigh module for FLE-2 load cell. High reliability and durability, available in galvanized steel and stainless steel.
Load foot
Height-adjustable load feet, crafted from zinc-plated steel and stainless steel.
Silent-Block
Damping system designed for weighing modules. Ensures high reliability and durability, manufactured from either rubber or vulkollan.
Fold back arm
Fold back arm for FLE2 load cell, engineered for versatile applications including hybridization and threaded rod installation.
